2008年5月10日星期六

簡述

使用 Microsoft Office Word、Excel 和 PowerPoint 2007 的新檔案格式開啟、編輯與儲存文件、活頁簿與簡報。

概觀

Microsoft Office XP 和 Word、Excel，或 PowerPoint 2003 程式的使用者 - 請在下載相容性套件前，先由 Microsoft Update安裝高優先性的更新。

在具備 Microsoft Office 2000、Office XP 或 Office 2003，同時也安裝相容性套件的情形下，您將可以使用 Word、Excel 和 PowerPoint 2007 的新檔案格式開啟、編輯與儲存檔案。此相容性套件還可以與 Microsoft Office Word Viewer 2003、Excel Viewer 2003 及 PowerPoint Viewer 2003 合併使用，檢視以這些新的格式儲存的檔案。如需相容性套件的詳細資訊，請參閱知識庫文件 923505。

注意：如果您是使用 Microsoft Word 2000 或 Microsoft Word 2002 讀取或寫入包含複雜字集的文件，請參閱 http://support.microsoft.com/kb/925451，了解讓 Word 2007 文件能在您的 Word 版本中正確顯示的方法。

系統管理員：相容性套件中包含的 Word、Excel 和 PowerPoint 轉換程式的系統管理範本也可供下載。

******************************************************************************

OFFICE 2007技巧：更改儲存格式，不用擔心舊版本無法開啟了!

因為是XML格式的關係，所以在面對舊版的OFFICE中，相信有人遇過在其他地方卻打不開的困擾 ! ?

例如說(以下test表示檔名)：
Word 2007：test.docx
Excel 2007：test.xlsx
PowerPoint 2007：test.pptx
官方網站的更新程式可以解決這樣的問題!! 但是出門在外若非使用自己電腦，恐怕不是很多人都會去下載這更新程式
能設定 OFFICE 2007 能夠自動存成各版本都可以輕鬆開啟的格式!

步驟1 開啟Word 2007後，請點選所標示的『向下箭頭符號』→『其他命令』
步驟2
接著請在Word選項的左邊選擇『儲存』→『以此格式儲存檔案』→『Word97-2003文件 (*.doc)』 → 確定就ok了!!
往後就不用擔心忘記更改格式的問題了!

2008年5月9日星期五

如何快速輸入標點符號套用至: Microsoft Office Excel 2007，PowerPoint 2007，Word 2007

除了使用 [特殊符號] 集之外，你可以使用由微軟輸入法所提供的標點符號輸入功能，可以快速輸入常用的全型符號。

輸入全型標點符號的方式：

搭配 Ctrl 鍵

先按住 Ctrl 鍵，再加上您要的標點符號，即可得到全型的標點符號。例如輸入，(逗號) 時，您就需要先按住 Ctrl 再加上，(逗號) 即可。

有時候您需要加上 Shift 鍵，例如輸入？(問號) 時，您就需要先按住 Ctrl 及 Shift 鍵，再加上？(問號) 即可。

搭配前導字元

當輸入法的狀態是在中文輸入模式時，先輸入輸入法的前導字元( ` )再輸入符號，您將會得到全形的符號。

例如：依順序輸入 ` [ 則會得到〔。

標點符號鍵盤

您只需要在 [標點符號鍵盤]上透過滑鼠點選即可立即輸入全形的標點符號。

下列兩種方法可以開啟微軟輸入法的 [標點符號鍵盤] ：

按下浮動於桌面上的 [語言列] 上的 [工具選單]，選擇 [標點符號]。
當輸入法的狀態是在中文 + 半形時，按下位於鍵盤左方的 Ctrl Alt 還有，(逗號)。

原始連結網頁

如何在 Windows 2000 使用 Windows Server 2003 原生的印表機驅動程式

欲在 Windows 2000 使用 Windows Server 2003 原生的 unidriver 印表機驅動程式，請依照下列步驟進行操作：

在 Windows 2000 中，開啟「命令提示字元」，鍵入如下的指令來停用 Spooler：

net stop spooler

切換到 Windows 2000 inf 目錄：

cd %systemroot%\inf

將 ntprint.inf 更名為 ntprint.inf.old，並刪除 ntprint.pnf

建立一個子目錄：

md C:\w2k3_drv\i386

從 Windows Server 2003 CD 的 i386 目錄將 driver.cab 複製到上個步驟所建立的子目錄裡，並更名成 pdriver.cab：

copy D:\i386\driver.cab C:\w2k3_drv\i386\pdriver.cab

請特別注意，記得要更名哦！

接著從 Windows Server 2003 CD 的 i386 目錄將 ntprint.inf 複製到 Windows 2000 的 inf 子目錄裡：

copy D:\i386\ntprint.inf C:\Winnt\inf

編輯上個步驟所複製的 ntprint.inf 檔，找到如下的地方：

[SourceDisksNames.x86] 1 = %WinNET2003%,driver.cab,,"I386" [SourceDisksNames.amd64] 1 = %WinNET2003%,driver.cab,,"Amd64" [SourceDisksNames.ia64] 1 = %WinNET2003%,driver.cab,,"Ia64"
將原本的 %WinNET2003% 換成 C:\w2k3_drv，置換完成之後的結果如下所示：

[SourceDisksNames.x86] 1 = %C:\w2k3_drv,driver.cab,,"I386" [SourceDisksNames.amd64] 1 = C:\w2k3_drv,driver.cab,,"Amd64" [SourceDisksNames.ia64] 1 = C:\w2k3_drv,driver.cab,,"Ia64"

鍵入如下的指令來啟用 Spooler：

net start spooler

接著請新增印表機，此時便會自動使用 Windows Server 2003 的 unidriver 與 Postscript 驅動程式。

您可能會遇到找不到檔案的問題，此時，請手動將指到 c:\w2k3_drv\i386\pdriver.cab。

轉載自如何在 Windows 2000 使用 Windows Server 2003 原生的印表機驅動程式

網頁的時鐘

提供各種個性化的新穎時鐘。你所要做的只是在你的網頁上添加一個標籤。我們的時鐘會根據你的選擇顯示你所需要的城市的名字。同時，你也可以選擇不同的時區。用我們的時鐘來裝飾你的網站！

2008年5月7日星期三

Setting up the Vista Point-to-Point Tunneling Protocol (PPTP)Virtual Private Network (VPN) Server

Setting up the Vista Point-to-Point Tunneling Protocol (PPTP)
Virtual Private Network (VPN) Server

This Mini-How-To was created as an example of one way to remotely access a home office network using a Point-to-Point Tunneling Protocol (PPTP) Virtual Private Network (VPN) connection over the public internet using technologies built-in to the Vista operating system. Configurations are based on remote user access to this example local area network. Note the setup and configuration procedure should be run while logged on as a user with Administrator privileges.

This procedure applies to the following versions of Vista: Home Basic, Home Premium, Business, Enterprise, Ultimate.

Setup the Vista PPTP VPN Server
(Screen shots are from a Vista Ultimate desktop PC)

Logon the Vista PC as a user with Administrator privileges. The Vista VPN Server is configured by navigating to Start | Control Panel | Network and Internet | Network and Sharing Center and selecting Manage network connections.

Select File | New Incoming Connection from the drop down menu. If the Menu bar is not visible press the key on the keyboard to toggle it on.

Select user's that will be allowed to login to the PPTP VPN server through the VPN connection. Click Next. In the example shown a special standard user account protected by a strong password that is only used for remote VPN access is selected. Click on Add someone... to add the special user account.

Select the Through the Internet check box then click on Next.

Select Internet Protocol Version 4 (TCP/IPv4) and then click on Properties.

If remote VPN users will be allowed to access the home local area network check the Allow callers to access my local area network checkbox. Configure the IP address assignment window using IP addresses in the same subnet as the VPN server PC and LAN (see the example local area network). In the following example the From: address is the address assigned to the VPN gateway and the To: address is assigned to the incoming VPN client. Click OK when finished. Note that by design Vista will only accept one incoming VPN connection at a time.

Click on Close.

When finished the Network Connections window will indicate the new Incoming Connections icon.

Configure the Network Firewall/NAT Router for PPTP VPN access

If the Vista PPTP VPN server PC is behind a broadband router, the router must be configured to allow PPTP VPN access. Both TCP Port 1723 and GRE Protocol 47 are used to pass PPTP VPN traffic through the firewall. Some router manufacturers call enabling GRE Protocol 47 traffic PPTP Pass Through or VPN Pass Through. Check the users manual for your specific router for details. The example screen shots are from a Network Everywhere NR041 4-Port Broadband Router. See the example local area network.

The Vista Windows Firewall will be automatically configured to allow PPTP VPN access. GRE Protocol 47 traffic is automatically enabled through the Windows Firewall when TCP Port 1723 is opened. For more information about the Windows Firewall see The New Windows Firewall in Windows Vista and Windows Server "Longhorn" article by the Cable Guy.

Configure the Vista PPTP VPN client and a client lmhosts file

The Vista PPTP VPN client can be configured using the procedure detailed on the online Vista Help and Support site.

An lmhosts file that maps computer names to LAN IP addresses on the remote network may be created in the C:\Windows\system32\drivers\etc folder on the VPN client computer. The client can then use the form \\ComputerName\ShareName to access shared folders on the remote network. See this Microsoft article for file syntax help. An example lmhosts file can be downloaded here. The example lmhosts file is based on remote user access to this example local area network.

Enhance client to server security

WARNING: The following are recommendations for Small Office/Home Office (SoHo) users connecting to a standalone Vista host computer with the Vista PPTP VPN client software only. Users connecting to remote computers in a corporate or domain environment should check with their network administrators for configuration guidance.

Client configuration

Client users are encouraged to use a strong password when logging onto a remote PC with a PPTP VPN connection. The client user can configure these properties by navigating to Start | Control Panel | Network and Internet | Network and Sharing Center and selecting Manage network connections. Right-click the VPN connection that you want to edit then click Properties.

Server configuration

The Vista PPTP VPN server computer administrator can configure these properties by navigating to Start | Control Panel | Network and Internet | Network and Sharing Center and selecting Manage network connections. Right-click the Incoming Connections icon then click Properties. Check the Require all users to secure their passwords and data checkbox.

Troubleshooting the PPTP VPN server - client data link

The Vista PPTP VPN server to client link can be tested using the detailed test procedure in the PPTP Ping and VPN Traffic sections of the Testing Network Paths for Common Types of Traffic article by the Cable Guy. The pptpsrv.exe and pptpclnt.exe programs on the XP SP2 CD may be used. To extract the programs on a Vista PC insert the CD in the CD drive and select Open folder to view files from the AutoPlay window.

Select the Support folder.

Select the Tools folder.

Select the Support cabinet file.

Highlight the pptpsrv.exe and pptpclnt.exe files then right-click the mouse button and select Extract from the menu window.

Save the files to a temporary folder. Click on X in the upper right corner of the window to close and eject the CD from the CD drive. Copy the pptpsrv.exe file to the server PC and the pptpclnt.exe file to a client PC and run the test procedure as detailed in the VPN Traffic section of the Testing Network Paths for Common Types of Traffic article by the Cable Guy.

http://theillustratednetwork.mvps.org/Vista/PPTP/PPTPVPN.html

HighPoint RocketRAID 2310 SATAII RAID卡

RocketRAID 2310 Host Adapter

Resource Items
	[Data Sheet]
	[Press Release]
	[Performance Report]
	[Compatibility List]
	[Cable Matrix]
	[Card Images]
	[Box Images]
	[Kits Images]
BIOS + Driver	[Download Center]
	[Mac Support ]

The HighPoint RocketRAID 2310 PCI Express to SATA II RAID Controller is the next generation for high performance computing solutions utilizing the latest interconnect PCI-Express.The RocketRAID 2310 is set to give much faster and improved I/O and supports features that are critical for high performance computing, high end workstation and enterprise storage server environments.

Controller Specifications

PCI Express x4 (x8 and x16 slot compatible)

SATA II and SATA I hard drive support

Up to 300MB/s for each SATA II drive port

Support RAID level 0, 1, 5, 10 and JBOD

Dynamic Sector Repair and Remapping

Online Capacity Expansion and Online RAID Level Migration (OCE/ORLM)

Native Command Queuing (NCQ)

SAF-TE enclosure management

Hard drive activity and Failed LED support

Staggered drive spin-up support

Hot swap and hot spare

Write-through and write-back cache support

Quick and Background initialization for quick RAID configuration

Online array roaming

BIOS booting support (INT13)

64bit LBA for over 2TB support

Automatic RAID rebuild of failed drive

S.M.A.R.T drive monitoring for status and reliability

Browser-based RAID management software

Command Line Interface (CLI)

SMTP for email notification

Operating system support for Windows, Windows x64 Editions Linux (open source), FreeBSD (open source) and Mac OS X

RAID Management Utilities

BIOS

Browser-based RAID Management

CLI

Operating Systems

Windows, Windows X64 Editions, Linux(opensource)
FreeBSD(opensource) and Mac OS X

Limited Warranty

3 years

‧產品特色 PCI-Express介面,支援4顆內接硬碟,RAID 0/1/5/10/JBOD,熱抽換及熱備援,支援64位元2TB以上容量,支援硬碟activity和failed LED訊號燈,SAF-TE Chassis管理,SMTP email自動通知

RocketRAID 2310 Highlights

使用PCI Express x4規格 (相容於x8跟x16插槽)
使用4個通道PCI-e x4介面 SATA II的磁碟陣列卡
最多可以連接4顆SATA II硬碟
支援磁碟陣列等級0, 1, 5, 10跟JBOD
支援Windows, Win x64, Windows Vista, Linux, FreeBSD and Mac OS X作業系統

RocketRAID 2310 Host Adapter
HighPoint RocketRAID 2310 PCI Express SATA II磁碟陣列卡使用了最新的PCI-Express互相連結科技，是跨世代高效能的運算解決方案。RocketRAID 2310帶來更快速且更佳的傳輸，並且支援高效能運算，高階工作平台以及企業級儲存伺服器環境所需的重要功能。 PCI-Express同時提供了雙向傳輸和資料串連，並且帶來了更快的速度。每個PCI Express擴充槽都有數個通道，提供了絕佳的擴充空間。此外，PCI Express還具備雙向等速傳輸率，在未來十年之內都將是效能與延展性的代表。

規格說明

使用PCI Express x4規格 (相容於x8 and x16插槽)
支援SATA II or SATA I硬碟
提供每一個通道的SATA II硬碟最快達每秒300MB的傳輸率
支援磁碟陣列等級0, 1, 5, 10 以及 JBOD
支援線上容量擴增(OCE)以及線上磁碟陣列等級轉換(ORLM)
支援 Native Command Queuing (NCQ)功能，提供更高的效能
支援SAF-TE管理功能，監控機箱內的狀態
支援(Activity / Failed) LED功能，確認硬碟在機箱中的狀態
支援硬碟延時交錯啟動的功能，減少在開機時電源的消耗
支援熱抽換以及熱備援，提供資料可利用性跟磁碟陣列自動修復
提供磁碟陣列 Write through and write back快取功能
提供快速以及背景初始化功能，使磁碟陣列可以立刻使用
支援線上陣列轉移
支援BIOS Booting (INT13)功能，加大容錯能力
支援64位元LBA，提供可大於2TB的磁碟空間
提供自動修復損毀的磁碟陣列功能
支援S.M.A.R.T陣列監控，可了解硬碟的狀態和可靠度
提供網路瀏覽器圖形介面的磁碟陣列管理軟體
提供命令列介面的磁碟陣列管理軟體
提供簡單信件協定(SMTP)作為事件以及錯誤的提報
支援Windows, Windows x64 Editions Linux (open source), FreeBSD (open source) and Mac OS X作業系統

磁碟陣列管理工具

BIOS
Browser-based RAID Management
CLI

支援作業系統
Windows, Windows X64 Editions, Linux(opensource) FreeBSD(opensource) 和 Mac OS X

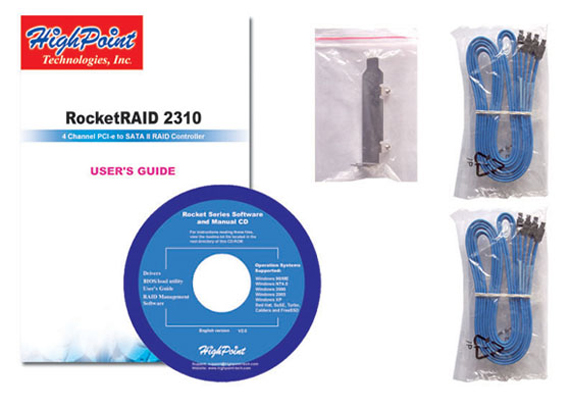

附件內容

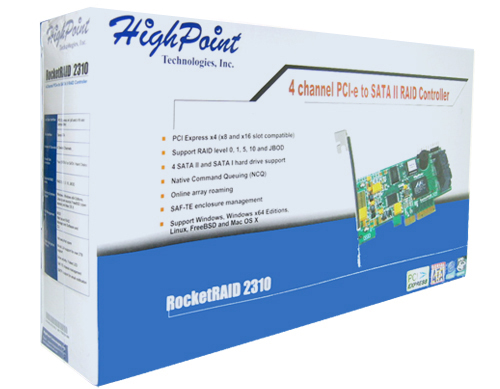

包裝外盒

http://www.highpoint-tech.com/USA/rr2310.htm

一些好用的小工具

http://keir.net/software.html

Your Current Internet (WAN) IP:

http://www.mywanip.com/

2008年5月5日星期一

Open Flash Chart

http://teethgrinder.co.uk/open-flash-chart/

開放原始碼的 Open Flash Chart 專案正體中文首頁. http://ofc.homelinux.net/

Notebook Hardware Control (NHC)

With Notebook Hardware Control you can easily control the hardware components of your Notebook
Notebook Hardware Control helps you to:

- control the hardware and system power management

- customize the notebook (open source ACPI Control System)

- prolong the battery lifetime

- cool down the system and reduce power consumption

- monitor the hardware to avoid system failure

- make your notebook quiet

Easy to use, friendly program surface and for free

NHC isn't only very powerful; it has a friendly program surface, it's easy to use and free for private use. A large number of users appreciate these advantages and NHC becomes one of the leading programs to control the power and hardware of modern notebooks.

由Google提供的免費Office軟體

http://googlesystem.blogspot.com/2007/08/google-pack-adds-staroffice.html

StarSuite 8 入門指南 http://docs.sun.com/app/docs/coll/1306.1?l=zh_TW

不喜歡用微軟昂貴的Office軟體，那就使用這套由Google提供的免費Office軟體吧，其中內容組成包含Writer(文書處理)、Calc (試算表)、Impress(簡報)、Draw(繪圖)、Base(資料庫)、Math(數學公式計算)，另外還有必需安裝的Java™ Runtime Environment。

繁體中文版下載連結

OpenDNS protects DNS service. Make your network safer, faster, smarter and more reliable.

Start using the world's largest and fastest-growing DNS service. Make your network safer, faster, smarter and more reliable. It's free.
使用OpenDNS有幾項好處：
可以安全過濾一些釣魚網站(phishing)。快速的域名解析，連結網站的速度會更快。可以即時校正網址的拼字錯誤。

OpenDNS protects millions of people a day across hundreds of thousands of schools, businesses and homes. We block phishing sites, give you the power to filter out adult sites and proxies among more than 50 categories, and provide the precision to block individual domains.

We provide you with the tools to see what's happening on your network, coupled with the tools to take action. For example, discover that myspace.com is the most frequently visited site on your network, and then block it with a single click.

Free yourself of DNS-related Internet outages with our zero-downtime global network. Eliminate DNS as a problem source on your network. Using OpenDNS means fewer support calls and headaches, letting you focus on more important issues.

免費網路服務，提供電腦網路連線DNS名稱服務。只要在連線設定的主要和次要DNS填寫以下官方網站提供的DNS IP，就可以使用。
